ACCUD  |  SKU: 817-180-02

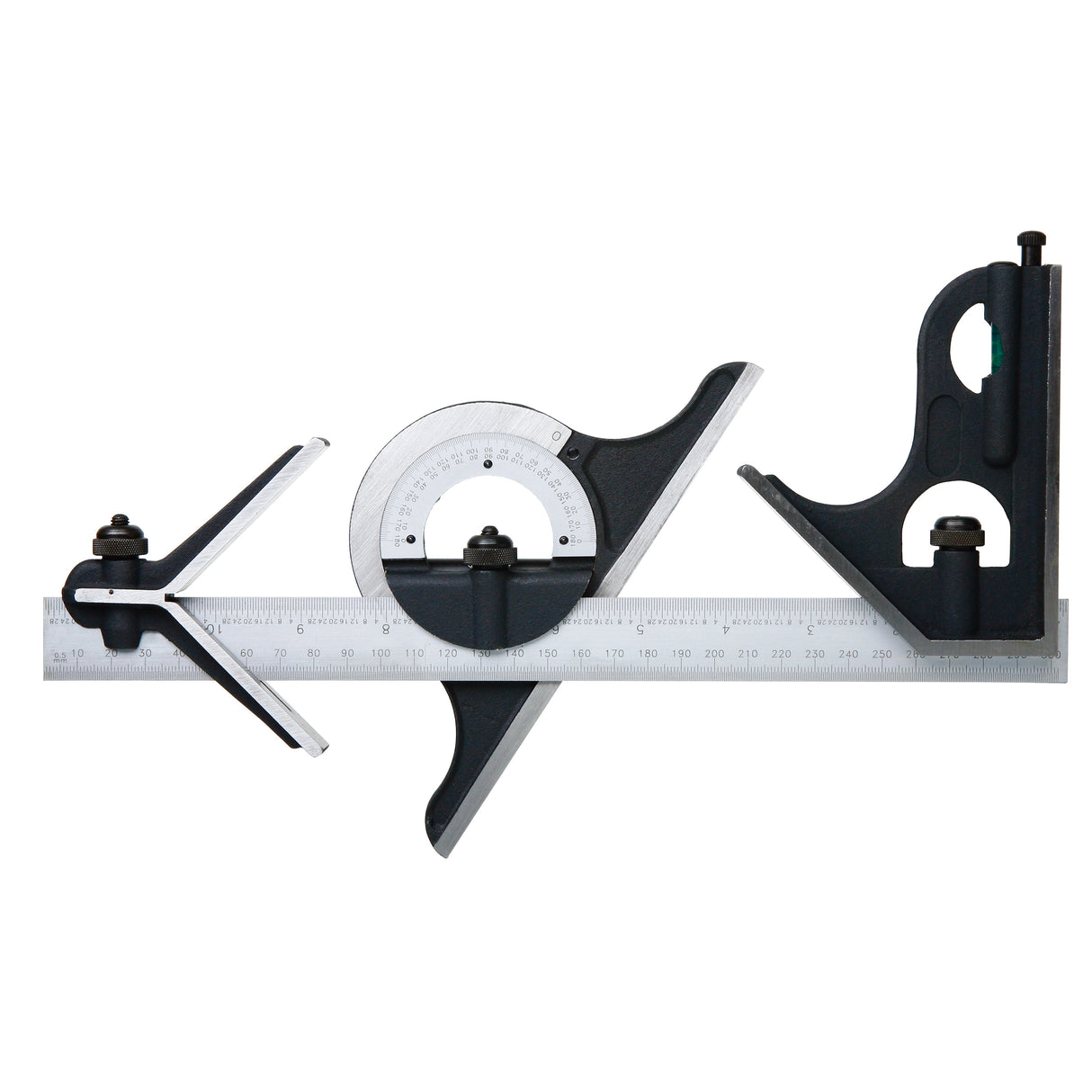

COMBINATION SQUARE SET range resolution

Code

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description

■ Protractor (made of cast iron), only for 817-180-02:
Used to set an angle or angle measurement, measuring range: 0-180°, accuracy: ±20′
■ Square (made of cast iron):
Used as 90° square or 45° square accuracy of 90° square: ±8′, accuracy of 45° square: ±10′
■ Blade (made of stainless steel):
Used as rule, measuring range: 300mm/12″ front side graduation: 0.5mm and 1/32” reverse side graduation: 1mm and 1/64”
■ Center finder (made of cast iron), only for 817-090-13 and 817-180-02:
To locate center of cylinders with diameter (Ød): 30-100mm, accuracy: ±0.15mm

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    ACCUD

    COMBINATION SQUARE SET range resolution

    $99.62 USD

    ■ Protractor (made of cast iron), only for 817-180-02:
    Used to set an angle or angle measurement, measuring range: 0-180°, accuracy: ±20′
    ■ Square (made of cast iron):
    Used as 90° square or 45° square accuracy of 90° square: ±8′, accuracy of 45° square: ±10′
    ■ Blade (made of stainless steel):
    Used as rule, measuring range: 300mm/12″ front side graduation: 0.5mm and 1/32” reverse side graduation: 1mm and 1/64”
    ■ Center finder (made of cast iron), only for 817-090-13 and 817-180-02:
    To locate center of cylinders with diameter (Ød): 30-100mm, accuracy: ±0.15mm

    Code

    • 817-180-02
